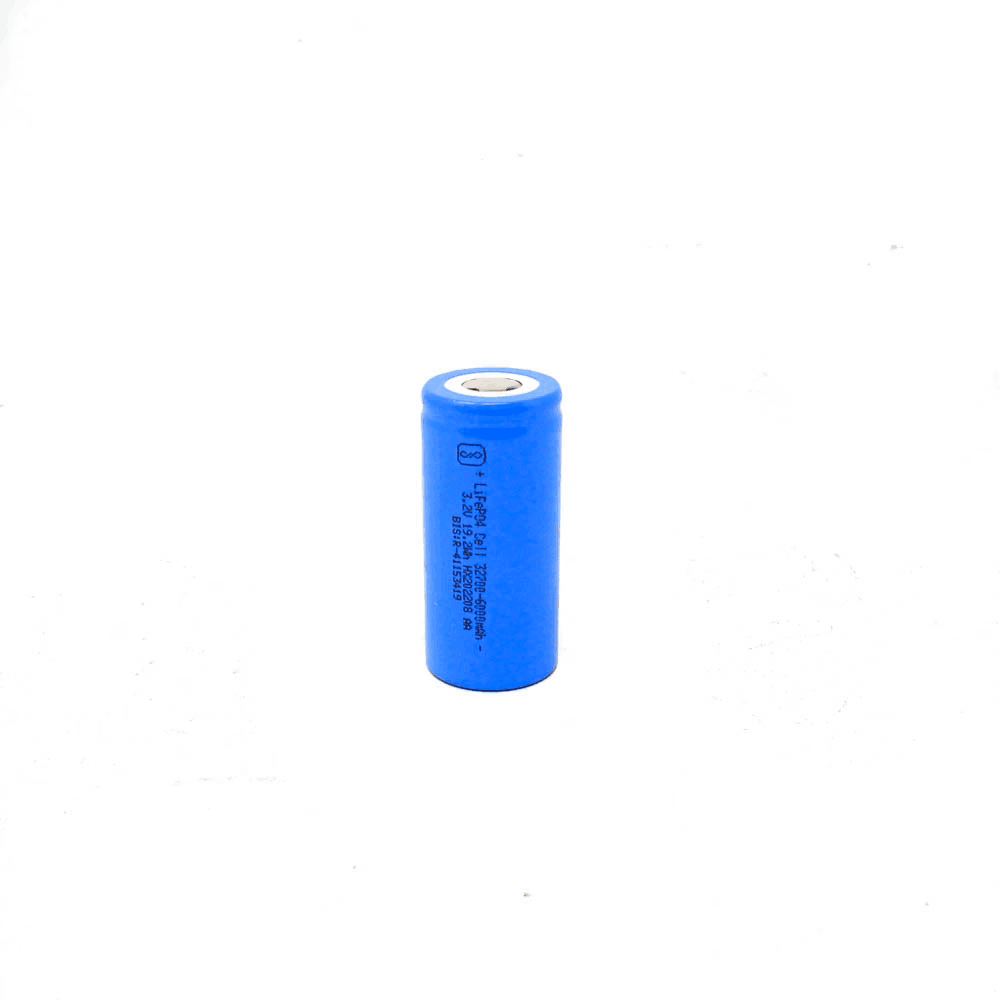

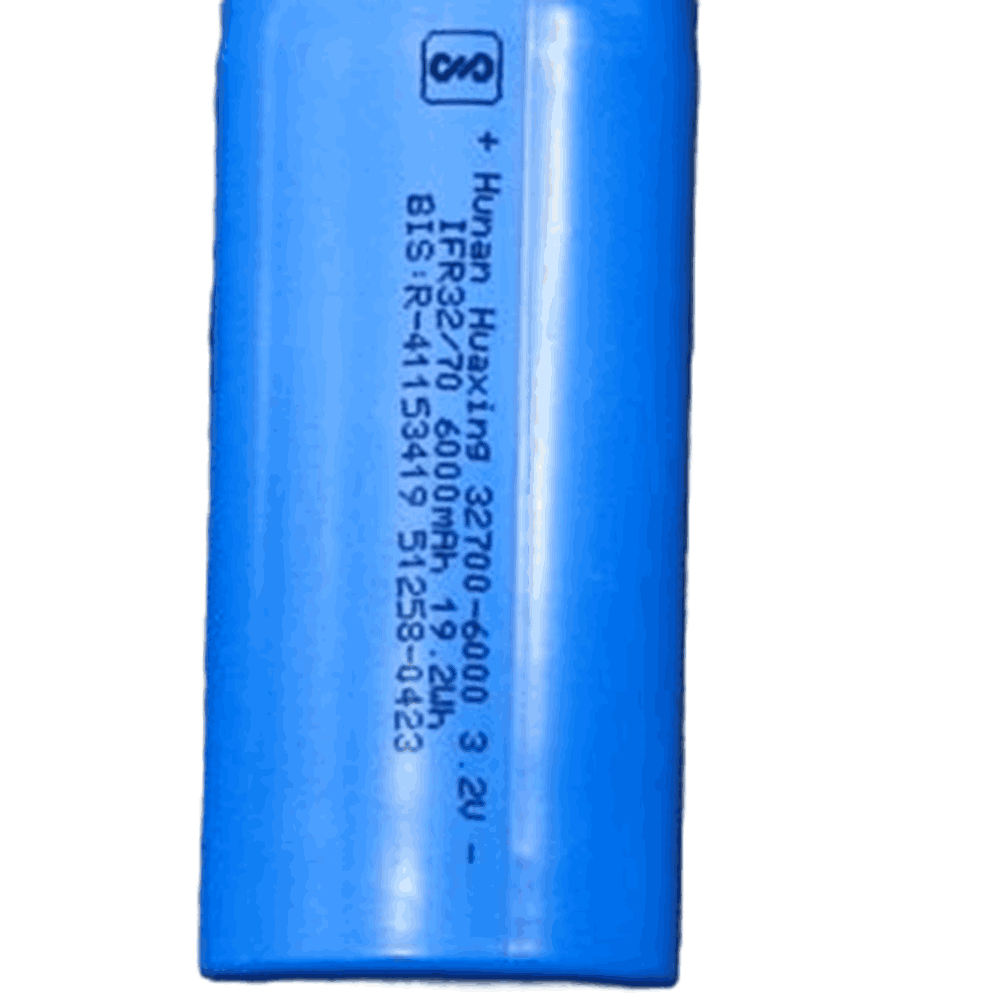

HX IFR32700 3.2V 6000mAh 3C LiFePO4 Cylindrical Battery Cell

The HX IFR32700 3.2V 6000mAh 3C LiFePO4 Cylindrical Battery Cell is a rechargeable lithium iron phosphate (LFP) battery designed for reliable power delivery, long service life, and energy storage applications. Featuring a nominal voltage of 3.2V and a capacity of 6000mAh (6Ah), this high-capacity cylindrical battery cell is suitable for DIY battery pack assembly, solar energy storage systems, backup power solutions, robotics, and various electronic projects.

With a 32700 cylindrical form factor, the HX IFR32700 battery offers a practical combination of capacity, power output, and durability. Its LiFePO4 chemistry is known for good thermal stability and improved safety characteristics compared with many conventional lithium-ion battery chemistries.

The 3C discharge rating indicates a theoretical discharge current of up to 18A for a 6Ah cell, subject to the manufacturer's specifications and operating conditions. This makes it suitable for applications requiring dependable power output.

Whether you are building a custom battery pack for solar lighting, developing an energy storage system, or working on an electronics project, the HX IFR32700 3.2V 6000mAh LiFePO4 battery cell is a versatile choice for rechargeable power applications.

Key Features

• Brand: HX

• Model: IFR32700

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP)

• Nominal Voltage: 3.2V

• Rated Capacity: 6000mAh (6Ah)

• Discharge Rating: 3C

• Potential Continuous Discharge Current: Up to 18A, subject to the manufacturer's specified limits

• Battery Type: Rechargeable cylindrical battery cell

• 32700 Form Factor: Compact cylindrical design for battery pack assembly

• Thermal Stability: LiFePO4 chemistry offers good thermal stability

• Rechargeable Design: Suitable for repeated charge and discharge cycles when operated correctly

• Energy Storage: Approximately 19.2Wh nominal energy

• Battery Pack Compatibility: Suitable for series and parallel configurations with appropriate cell matching and a compatible BMS

Applications

• Solar street lights and solar lighting systems

• Solar energy storage and DIY solar battery packs

• Home energy storage projects

• UPS and backup power systems

• DIY LiFePO4 battery pack assembly

• Robotics and automation projects

• Electric vehicle and mobility battery pack development, subject to system requirements

• Portable power solutions

• LED lighting systems

• Electronic equipment and industrial power applications

• Research, development, and educational electronics projects

Product Specifications

• Brand: HX

• Model Number: IFR32700

• Battery Type: LiFePO4 Cylindrical Battery Cell

• Cell Size: 32700

• Nominal Voltage: 3.2V

• Nominal Capacity: 6000mAh / 6Ah

• Nominal Energy: 19.2Wh

• Discharge Rate: 3C

• Calculated Discharge Current at 3C: 18A

• Recommended Charging Voltage: 3.65V maximum, subject to the manufacturer's datasheet

• Dimensions: Approximately 3.2 × 7.05 cm

• Weight: Approximately 140–145g

• Rechargeable: Yes

• Battery Protection: External BMS recommended for battery pack applications; individual cell protection is not assumed

• Package Type: Single cylindrical battery cell

Note: Dimensions and weight are approximate. Confirm the exact current rating, charging specifications, discharge cutoff voltage, and cycle life against the datasheet for your supplied HX cell.

Specialization

The HX IFR32700 battery cell combines a 6000mAh capacity with a nominal 3.2V output in a standardized cylindrical form factor. Its LiFePO4 chemistry makes it suitable for applications where thermal stability, dependable power delivery, and rechargeable energy storage are important.

The 3C discharge rating makes this cell useful for battery pack designs requiring higher current output. Multiple cells can be connected in series to increase voltage or in parallel to increase capacity, provided the pack is designed with suitable protection, cell balancing, and electrical connections.

Package Includes

• 1 × HX IFR32700 3.2V 6000mAh 3C LiFePO4 Cylindrical Battery Cell

The package does not include a battery management system (BMS), charger, holder, nickel strips, or connecting wires unless explicitly specified in your product offering.

Important Safety Information

• Use a compatible LiFePO4 charger with the correct charging voltage and charging profile.

• Do not charge this cell using a standard 4.2V-per-cell lithium-ion charging profile.

• Use an appropriate BMS for multi-cell battery pack applications.

• Avoid short circuits, reverse polarity, overcharging, over-discharging, and mechanical damage.

• Do not mix cells with different capacities, chemistries, ages, or states of charge in a battery pack.

• Follow the manufacturer's datasheet for charging current, discharge limits, operating temperature, and storage conditions.
