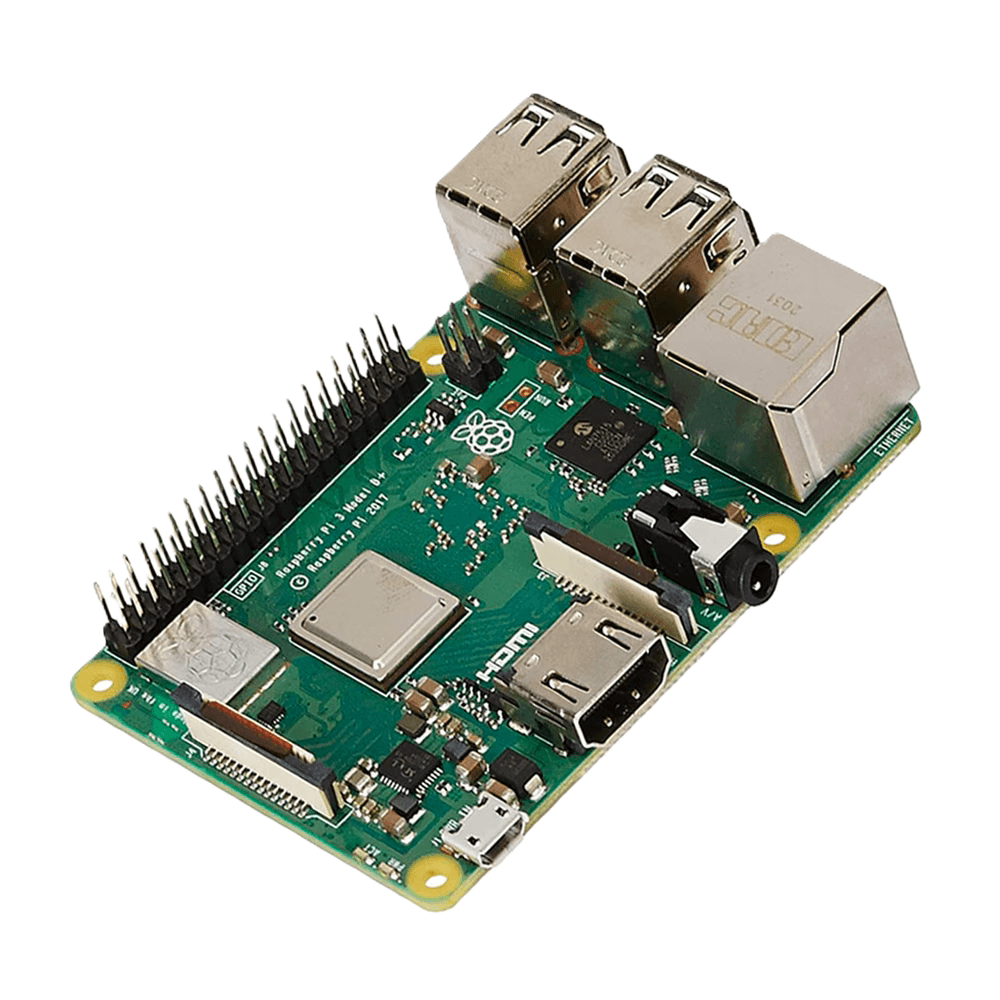

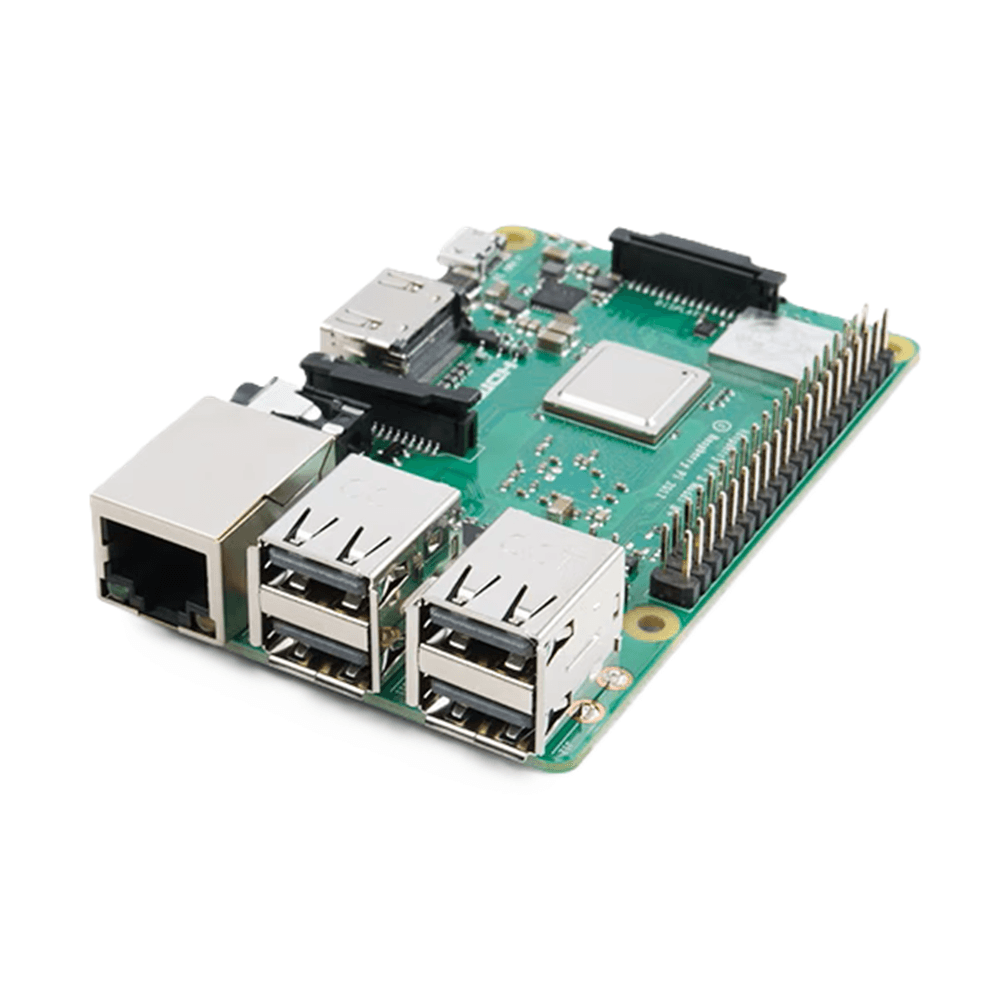

Raspberry Pi 3 Model B+

The Official Raspberry Pi 3 Model B+ is a compact and versatile single-board computer designed for electronics projects, programming, IoT, robotics, automation, networking, education, and DIY applications. It features a 1.4GHz 64-bit quad-core Broadcom BCM2837B0 Cortex-A53 processor with 1GB LPDDR2 RAM, providing a capable platform for everyday computing and embedded projects.

With dual-band 2.4GHz/5GHz Wi-Fi, Bluetooth 4.2/BLE, Gigabit Ethernet, four USB 2.0 ports, full-size HDMI, a 40-pin GPIO header, CSI camera interface, and DSI display interface, the Raspberry Pi 3B+ offers extensive connectivity in a small board. It also supports Power over Ethernet when used with a compatible PoE HAT.

It is an excellent choice for students, developers, makers, hobbyists, and professionals building IoT devices, smart home systems, robots, servers, media projects, automation systems, and Linux-based embedded applications.

Key Features

• Official Raspberry Pi 3 Model B+ single-board computer
• Broadcom BCM2837B0 64-bit quad-core ARM Cortex-A53 processor
• 1.4GHz CPU clock speed
• 1GB LPDDR2 SDRAM
• Dual-band 2.4GHz and 5GHz 802.11b/g/n/ac Wi-Fi
• Bluetooth 4.2 and Bluetooth Low Energy (BLE)
• Gigabit Ethernet over USB 2.0, with up to 300Mbps maximum throughput
• 4 × USB 2.0 ports
• Full-size HDMI output
• 40-pin GPIO header for electronics and hardware projects
• Dedicated CSI camera interface
• Dedicated DSI display interface
• 4-pole stereo audio and composite video output
• MicroSD card slot for operating system and data storage
• Supports Power over Ethernet (PoE) with a separate PoE HAT
• Compact Raspberry Pi form factor
• Suitable for Linux, programming, IoT, robotics and DIY projects

Applications

• IoT and smart home projects
• Robotics and automation
• Home server and network projects
• Programming and Linux learning
• Industrial monitoring and control
• Home automation systems
• Camera and surveillance projects
• Digital signage and display projects
• Media and entertainment applications
• Web and network server projects
• DIY electronics and embedded systems
• STEM and educational projects
• Remote monitoring and data-logging systems

Technical Specifications

• Model: Raspberry Pi 3 Model B+
• Processor: Broadcom BCM2837B0
• CPU: Quad-core ARM Cortex-A53, 64-bit
• CPU Speed: 1.4GHz
• RAM: 1GB LPDDR2 SDRAM
• Wi-Fi: Dual-band 2.4GHz / 5GHz 802.11b/g/n/ac
• Bluetooth: Bluetooth 4.2 + BLE
• Ethernet: Gigabit Ethernet over USB 2.0
• USB: 4 × USB 2.0
• GPIO: 40-pin
• Video: Full-size HDMI
• Camera: CSI interface
• Display: DSI interface
• Storage: MicroSD
• Power Input: 5V / 2.5A via Micro-USB
• PoE: Supported with separate PoE HAT
• Operating Temperature: 0°C to 50°C
• Dimensions: Approximately 8.5 × 5.6 × 1.7 cm; the board maintains the standard Raspberry Pi 3 footprint.

Package Includes

• 1 × Official Raspberry Pi 3 Model B+ Board
