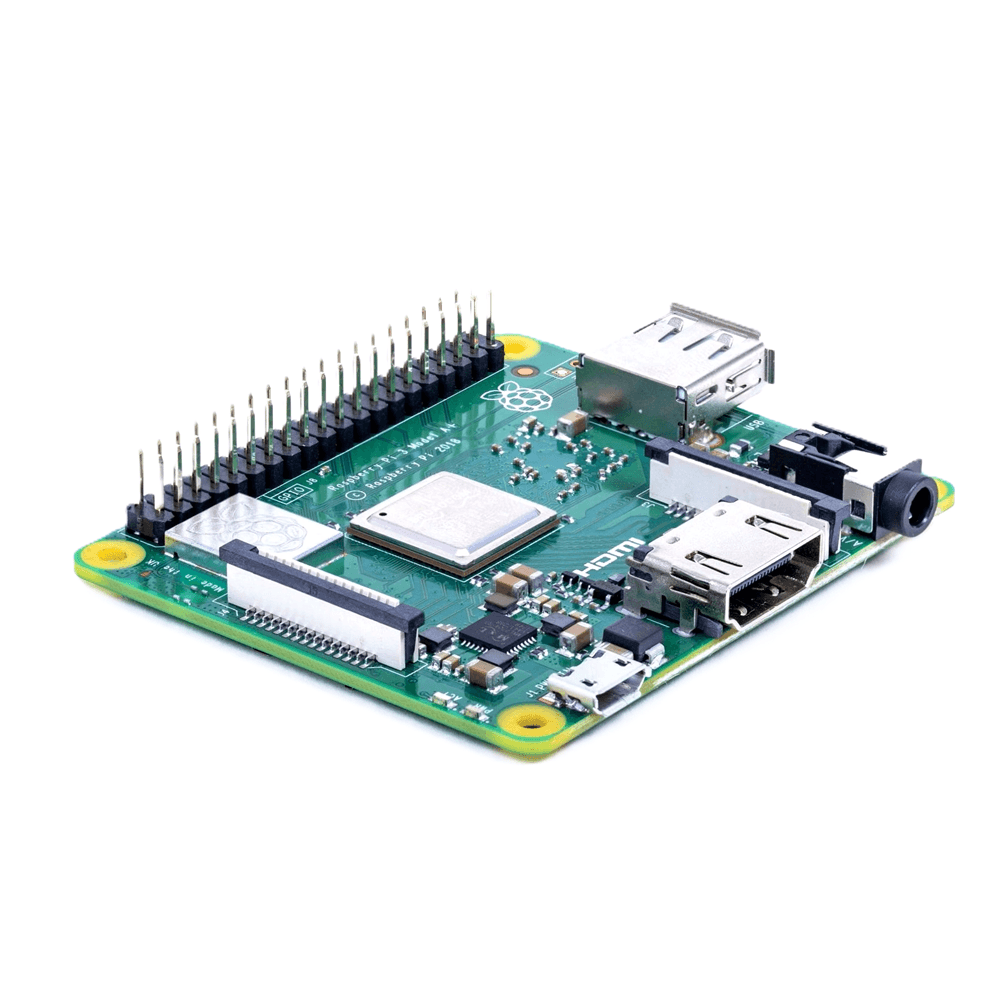

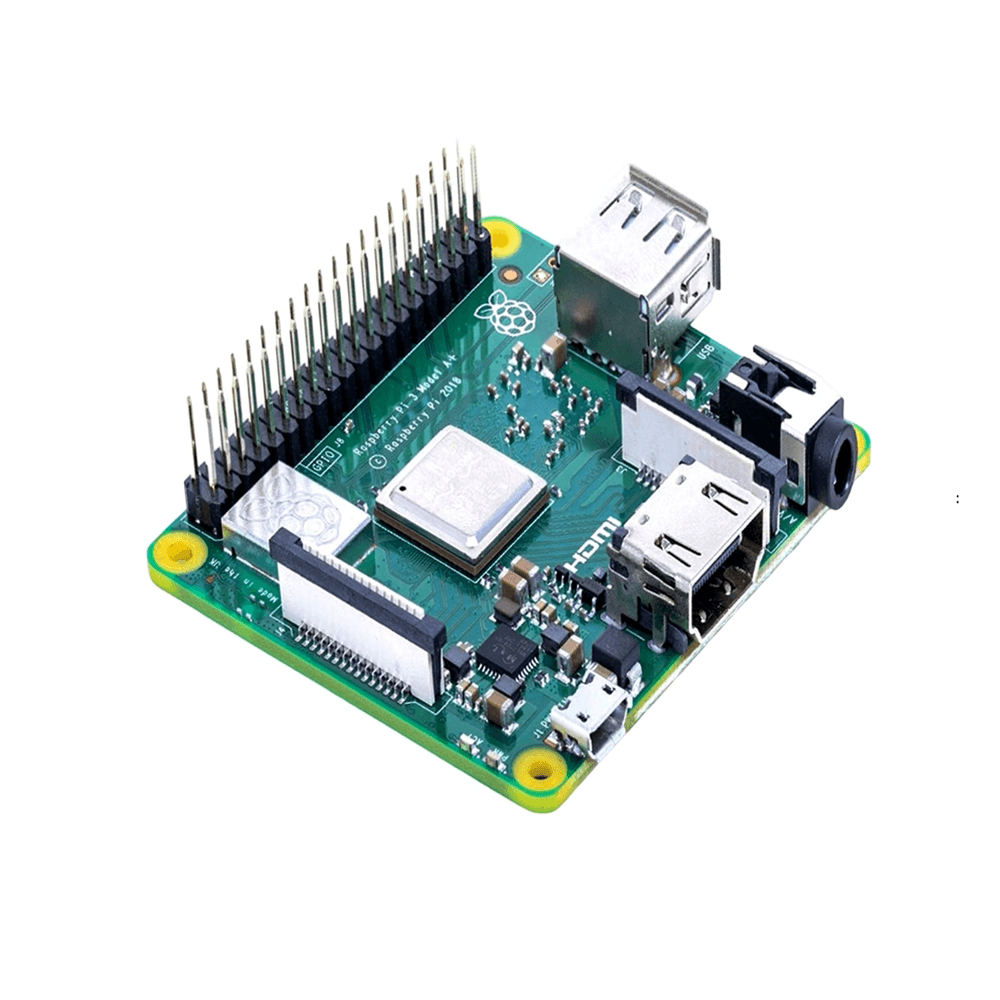

Raspberry Pi 3 Model A+

The Raspberry Pi 3 Model A+ is a compact, powerful and affordable single-board computer designed for electronics projects, programming, IoT applications, robotics, automation and DIY computing. It features a 1.4 GHz 64-bit quad-core ARM Cortex-A53 processor, 512 MB RAM, built-in 2.4 GHz Wi-Fi and Bluetooth 4.2/BLE, providing reliable wireless connectivity in a small form factor.

With its 40-pin GPIO header, CSI camera interface, DSI display interface, USB connectivity and microSD card storage, the Raspberry Pi 3 Model A+ can be used for a wide variety of embedded and computing applications. It supports popular operating systems such as Raspberry Pi OS and can be programmed using Python and other programming environments.

Its compact size makes the Raspberry Pi 3 Model A+ suitable for space-constrained projects where wireless connectivity and low power consumption are important.

Key Features

• Raspberry Pi 3 Model A+ single-board computer

• 1.4 GHz 64-bit quad-core ARM Cortex-A53 processor

• Broadcom BCM2837B0 processor

• 512 MB LPDDR2 RAM

• Built-in 2.4 GHz 802.11n Wi-Fi

• Bluetooth 4.2 and Bluetooth Low Energy (BLE)

• 40-pin GPIO header for electronics and robotics projects

• 1 × USB 2.0 Type-A port

• microSD card slot for operating system and data storage

• CSI camera interface

• DSI display interface

• HDMI output for connecting to a display

• Micro-USB power input

• Compact and lightweight design

• Compatible with Raspberry Pi OS and other supported operating systems

• Suitable for programming, IoT, robotics and automation projects

Applications

• IoT and smart home projects

• Robotics and robot control systems

• Home automation

• Embedded computing

• Wireless sensor networks

• DIY electronics projects

• Python programming and coding education

• Media and network projects

• Camera and image-processing projects

• Industrial monitoring and automation prototypes

• Data logging systems

• Educational computing projects

• Portable computing projects

Specifications

• Model: Raspberry Pi 3 Model A+

• Processor: Broadcom BCM2837B0, 64-bit Quad-Core ARM Cortex-A53

• CPU Speed: 1.4 GHz

• RAM: 512 MB LPDDR2

• Wireless: 2.4 GHz 802.11n Wi-Fi

• Bluetooth: Bluetooth 4.2 / BLE

• GPIO: 40-pin GPIO header

• USB: 1 × USB 2.0

• Video Output: Full-size HDMI

• Storage: microSD card slot

• Camera Interface: CSI

• Display Interface: DSI

• Power: 5V via Micro-USB

• Board Size: Approx. 65 × 56 mm

• Board Type: Single-board computer

Package Includes

• 1 × Raspberry Pi 3 Model A+ Board

• 1 × 40-Pin GPIO Header (as applicable to supplied board version)

Note: Power adapter, microSD card, case, HDMI cable and other accessories are not included unless specifically mentioned in the product package.
