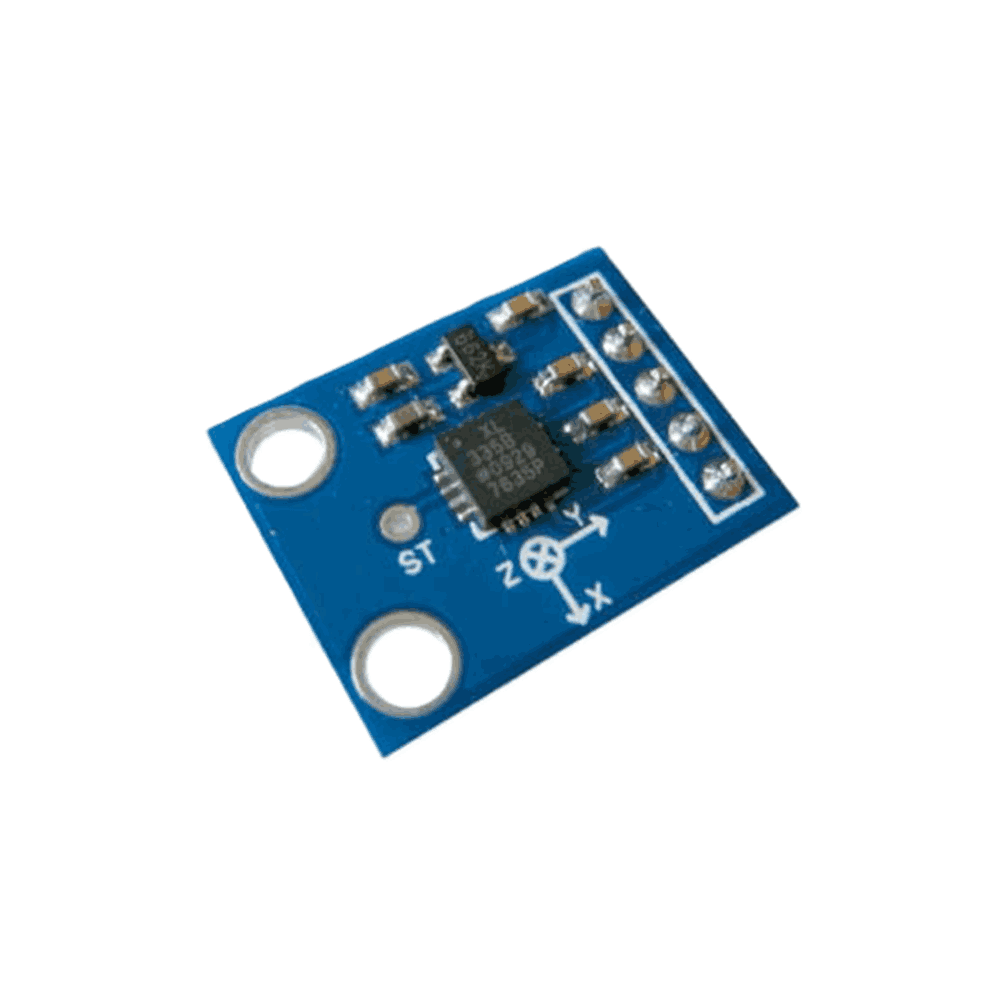

ADXL335 3-Axis Analog Accelerometer Sensor Module

The ADXL335 3-Axis Analog Accelerometer Sensor Module is a compact, low-power motion-sensing module designed to measure acceleration along three axes: X, Y, and Z. It is suitable for detecting movement, tilt, vibration, and changes in orientation in electronic projects, robotics, and embedded systems.

Based on the ADXL335 MEMS accelerometer, this sensor provides three separate analog voltage outputs corresponding to the X, Y, and Z axes. These outputs can be connected to the analog input pins of compatible microcontrollers, such as Arduino boards, for motion measurement and data analysis.

With its low power consumption, compact design, and three-axis sensing capability, the ADXL335 accelerometer module is an excellent choice for students, hobbyists, engineers, and DIY electronics enthusiasts. It can be used in robotics projects, tilt detection systems, vibration monitoring, motion-controlled applications, and educational experiments.

The sensor can measure both static acceleration caused by gravity and dynamic acceleration resulting from movement, shock, or vibration. Its typical full-scale measurement range is ±3 g, making it suitable for a variety of low-power motion and orientation sensing applications.

Key Features

• Three-Axis Acceleration Sensing: Measures acceleration along the X, Y, and Z axes.

• Analog Voltage Outputs: Provides separate analog output signals for all three axes.

• ±3 g Measurement Range: Suitable for detecting everyday motion, tilt, and vibration.

• Low Power Consumption: The ADXL335 sensor IC typically consumes approximately 350 µA.

• Compact Design: Suitable for space-constrained electronic and robotics projects.

• Tilt Detection: Detects changes in orientation by measuring the effect of gravity.

• Motion Detection: Measures acceleration caused by movement and changes in velocity.

• Microcontroller Compatibility: Can interface with Arduino and other controllers featuring compatible analog inputs.

• Vibration Monitoring: Useful for basic vibration measurement and motion analysis.

• DIY-Friendly: Suitable for prototyping, electronics experiments, and educational projects.

Applications

• Arduino-based motion detection projects.

• Robotics and robotic vehicle movement sensing.

• Tilt and inclination measurement systems.

• Vibration monitoring and analysis.

• Motion-controlled electronic devices.

• Gesture and orientation detection experiments.

• DIY electronics and embedded system development.

• Educational projects and engineering laboratory experiments.

• Model balancing and movement measurement systems.

• Data acquisition and analog sensor interfacing.

• Shock and movement detection applications.

• Experimental motion tracking systems.

Technical Specifications

• Product Name: ADXL335 3-Axis Analog Accelerometer Sensor Module

• Sensor IC: ADXL335

• Sensor Type: MEMS Accelerometer

• Number of Axes: 3-Axis (X, Y, Z)

• Measurement Range: ±3 g

• Output Type: Analog Voltage

• Number of Analog Outputs: 3 (X, Y, Z)

• Sensor IC Supply Voltage: 1.8 V to 3.6 V

• Typical Sensitivity: Approximately 300 mV/g at a 3 V supply

• Typical Sensor IC Current Consumption: 350 µA

• Sensing Capability: Acceleration, tilt, movement, and vibration

• Interface: Analog

• Compatible Platforms: Arduino and other microcontrollers with suitable analog inputs

Note: The specifications above describe the ADXL335 sensor IC. The actual module's supply voltage, dimensions, pin configuration, and onboard circuitry may vary by board version. Please verify the specific module before publishing exact board-level specifications.

Specialization

• Three-axis analog acceleration measurement.

• Low-power MEMS motion sensing.

• Static and dynamic acceleration detection.

• Gravity-based tilt and orientation sensing.

• Analog interfacing with microcontrollers.

• Compact sensor integration for embedded electronics.

• Motion and vibration measurement for prototype systems.

Package Includes

• 1 × ADXL335 3-Axis Analog Accelerometer Sensor Module

Package contents may vary depending on the module version supplied. Connecting wires, pin headers, and accessories are not included unless specifically mentioned in your product listing.

Why Choose the ADXL335 Accelerometer Module?

The ADXL335 is a practical choice for projects requiring reliable three-axis analog acceleration measurements. Its simple analog interface makes it useful for learning about motion sensing, developing robotics systems, experimenting with tilt detection, and integrating acceleration measurements into embedded electronics.

Whether you are building a DIY robot, developing an Arduino-based motion sensor project, or experimenting with vibration and orientation measurements, the ADXL335 3-axis accelerometer module provides a compact solution for your electronics toolkit.
