Waveshare Industrial USB TO RS485 Bidirectional Converter, Onboard original CH343G, Multi-Protection

The Waveshare Industrial USB TO RS485 Bidirectional Converter (USB TO RS485 B) is a reliable industrial-grade communication converter designed to connect a computer or other USB host to RS485 devices and networks. It uses the original CH343G USB-to-serial conversion chip and supports fast, stable, bidirectional USB-to-RS485 communication. The module also incorporates multiple protection circuits, including TVS protection, ESD protection, resettable fuse, protection diodes, and surge/lightning protection, making it suitable for demanding industrial and embedded applications.

With a USB-A interface, screw-terminal RS485 connection and automatic hardware data-direction control, the converter is convenient for industrial automation, Modbus communication, PLC systems, instrumentation, smart devices, and serial debugging. RS485 communication can reach approximately 1200 meters at low baud rates, while supporting point-to-multipoint communication of up to 32 nodes.

Key Features

• Original CH343G Chip: Provides stable and reliable USB-to-RS485 communication with good compatibility.
• Bidirectional Communication: Supports USB-to-RS485 data transmission in both directions.
• Industrial-Grade Design: Suitable for industrial control, automation and embedded communication applications.
• High-Speed Communication: CH343G version supports communication rates up to 3 Mbps.
• Automatic Direction Control: Hardware automatically detects and controls the RS485 data transmission direction.
• Multiple Protection Circuits: Includes TVS, ESD protection, resettable fuse and protection diodes.
• Surge & Lightning Protection: RS485 interface provides up to 600 W surge/lightning protection and 15 kV ESD protection.
• Long-Distance RS485 Communication: Transmission distance can reach approximately 1200 m at low communication speeds.
• Point-to-Multipoint: Supports up to 32 RS485 nodes; a repeater is recommended for larger networks.
• LED Indicators: PWR, TXD and RXD LEDs provide convenient power and communication-status monitoring.
• Wide OS Compatibility: Supports Windows 11/10/8.1/8/7/XP, Linux, Mac, Android and WinCE.
• 120Ω Termination Resistor: Onboard balancing/termination resistor for RS485 communication.

Applications

• Industrial automation and control systems
• PLC communication
• Modbus RTU communication
• RS485 sensor and meter interfacing
• Industrial monitoring systems
• Smart energy meters
• CNC and machinery communication
• Building automation
• Access-control systems
• Embedded system development
• Microcontroller-to-PC communication
• RS485 network testing and debugging
• Data acquisition systems
• Long-distance serial communication

Specifications

• Brand: Waveshare
• Product: USB TO RS485 (B)
• Product Type: Industrial USB to RS485 Converter
• USB Interface: USB-A
• USB Operating Voltage: 5V
• USB-to-RS485 Chip: CH343G
• Communication Interface: RS485
• RS485 Connector: Screw Terminal
• RS485 Pins: A+, B-, GND
• Communication Rate: 50 bps – 3 Mbps
• RS485 Direction Control: Hardware automatic control
• RS485 Transmission Distance: Approx. 1200 m at low baud rate
• USB Transmission Distance: Approx. 5 m
• RS485 Network: Point-to-multipoint, up to 32 nodes
• RS485 Protection: 600 W surge/lightning protection, 15 kV ESD protection
• USB Protection: 200 mA resettable fuse and ESD protection
• Termination: Onboard 120Ω balancing resistor
• Indicators: PWR, TXD, RXD
• Operating Systems: Windows, Linux, Mac, Android, WinCE
• Operating Temperature: -15°C to 70°C
• Operating Humidity: 5% RH to 95% RH

Package Includes

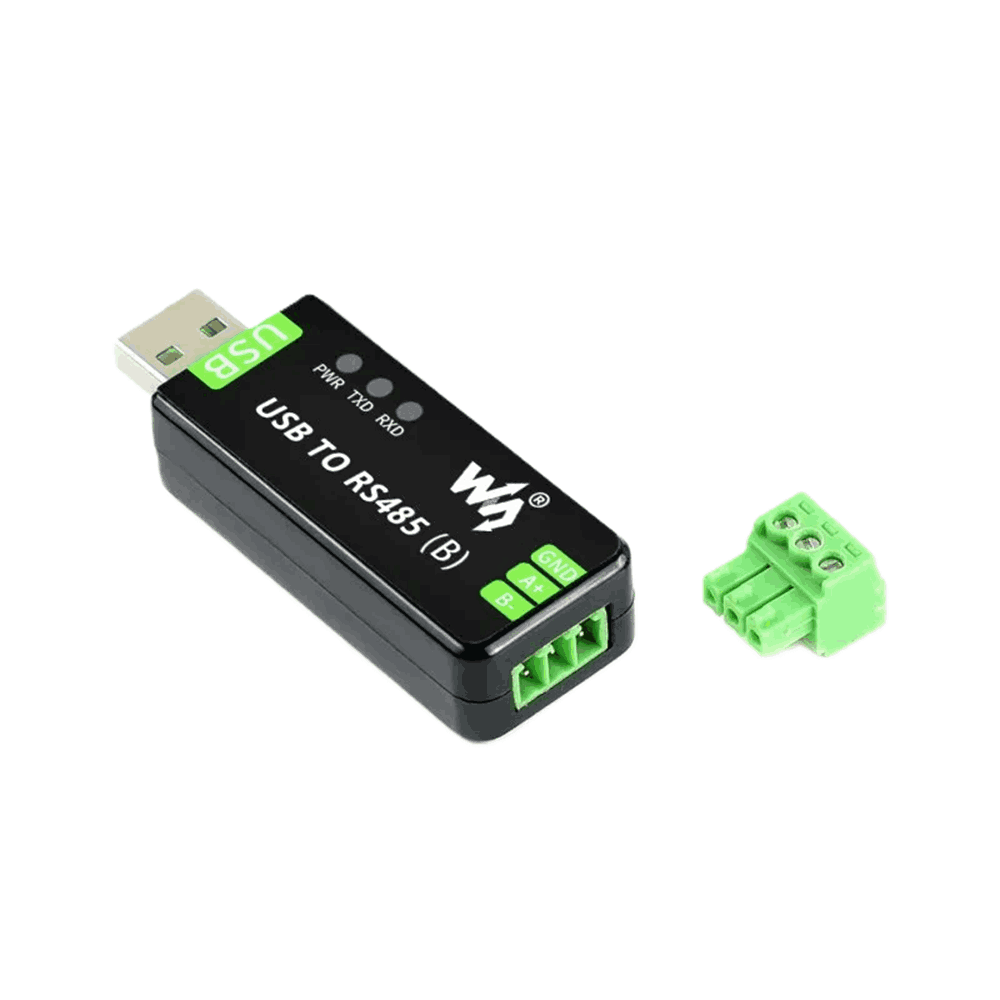

• 1 × Waveshare Industrial USB TO RS485 (B) Converter

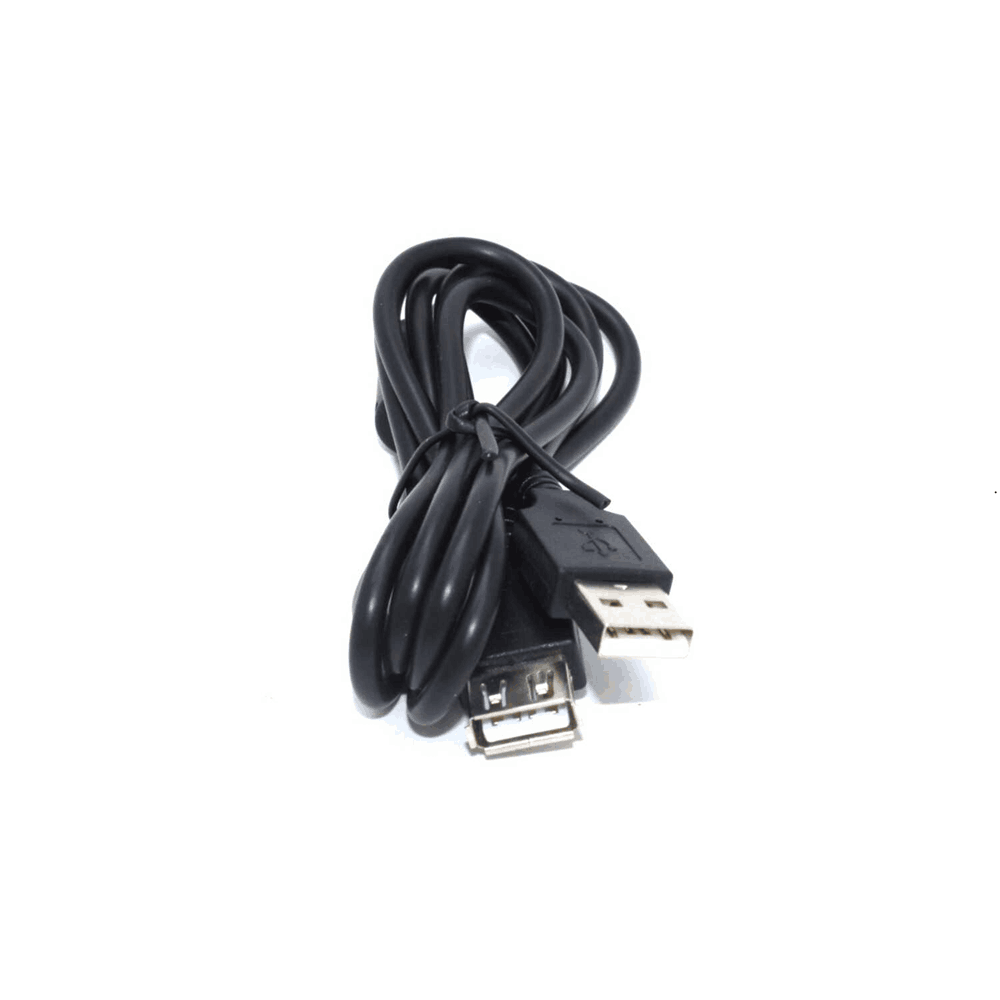

• 1 × USB-A Male to USB-A Female Cable
• 1 × Screwdriver
